The Radiatively Important Trace Species (RITS) program was the original gas chromatographs used to make in-situ measurements at several field sites from 1983-2001. These GC's were replaced by the current CATS Gas Chromatographs at the in-situ sampling sites.
The last of the RITS systems at the field sites was retired in 2001. An effort to finalize the 15 year RITS data set by checking the existing data base for errors and recovering information from problem periods is described in the RIts Data Recovery page.
Thayne Thompson was the RITS project leader and is now retired. Geoff Dutton is the CATS project manager acting as the station liaison, managing equipment deployment and maintenance, and doing the data processing and quality control. David Nance is the RITS data manager.
The RITS GC's made measurements of nitrous oxide (N2O), the chlorofluorocarbons: CFC-12 (CCl2F2), CFC-11 (CCl3F), and CFC-113 (CCl2F-CClF2) and the chlorinated solvents: methyl chloroform (CH3CCl3) and carbon tetrachloride (CCl4) once an hour.

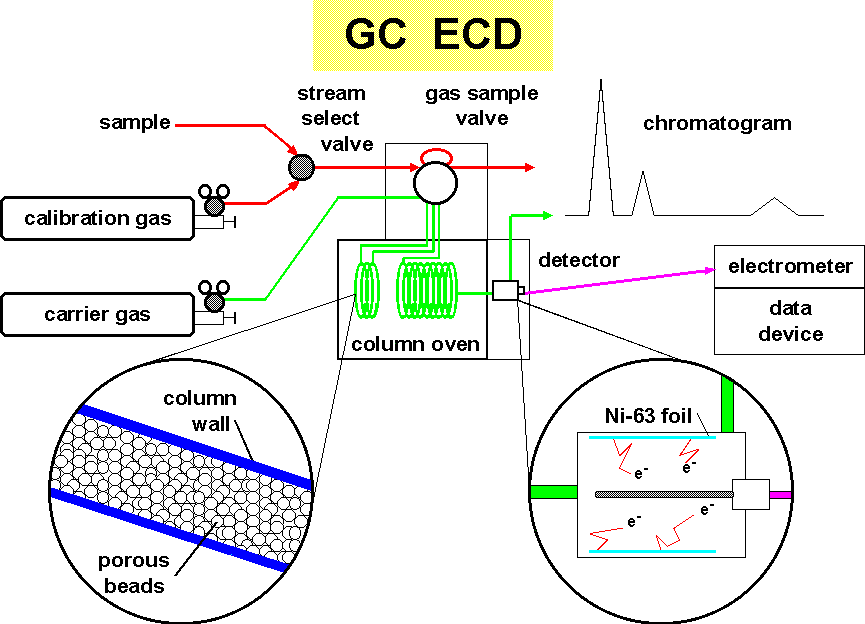

Air is drawn through a sampling line using a clean pump. This air flushes the gas sampling valve for about 5 minutes. The flushing is then stopped and the sample bleeds down to ambient pressure. The sample is inserted into a stream of inert carrier gas (usually nitrogen or a mixture of argon/methane) which pushes the air through the separation process.
The separation of the sample air is accomplished using gas chromatography. Tiny porous beads, sometimes coated with a liquid, interact with the mixture of molecules impeding there movement either because of their size or their solubility. In our case, this separation column is divided into two parts. When the chemicals of interest move onto the second column, the first column's flow is reversed to clean heavier compounds off before the next injection. This is called "backflushing".
Detection of the halocompounds is by an electron capture detector. A radioactive foil of nickel-63 is inside the pin-in-cup detector. The beta decay (an electron) ionizes the carrier gas forming an electron cloud. Periodically a large positive pulse is applied to the center electrode. This causes the free electrons to move to the electrode where they are measured as a tiny current. When a molecule containing halogen atoms, which has the property of enhanced affinity for electrons, enters the detector, it readily attracts and holds a free electron. The background current is thus reduced. In due time the electron capture molecules are flushed out of the detector and the current returns to its previous level.
The measure of the dip in the current curve is a measure of the amount of chemical present. By periodically injecting gas mixtures containing known quantities of the chemical of interest, calibration of the detector is accomplished.
Recording of the inverted current produces a curve called a "chromatogram".
