Wind Forecasting Improvement Project (WFIP-2) Science Goals
The Wind Forecast Improvement Project in Complex Terrain (hereafter WFIP2) has two overarching scientific goals:
- To improve the physical understanding of atmospheric processes that directly impact wind energy forecasts in areas of complex terrain.
- To incorporate the new understanding into a foundational weather forecasting model in order to improve wind energy forecasts.
The participants in WFIP2 are conducting a field campaign to assess how physical processes alter wind speeds across the rotor diameter. From this research, the team will work to develop physical modeling schemes or atmospheric theories that can be incorporated in foundational weather models to improve wind forecasting.
Science Goals of the NOAA’s Global Radiation Group (GRAD) of the Global Monitoring Laboratory (GML)
NOAA GRAD’s role is to evaluate the surface radiation budget, aerosols, and clouds in different meteorological regimes representative of complex terrain in the Columbia River Valley.
The surface radiation budget is the difference between the downward and upward components of shortwave (SW) and thermal infrared longwave (LW) radiation. Solar and infrared radiation are modulated by atmospheric conditions including clouds and aerosols. The reflected solar and the upwelling longwave radiation are in part determined by the land surface type and moisture availability. The sum of the incoming and outgoing radiative components at the surface constitutes the net radiation or net absorbed energy available for the transport of sensible heat and water vapor into the atmosphere and storage of heat in the ground. It also drives many of the complex processes of vegetated surfaces such as photosynthesis. This net radiation is the bulk of the energy available for atmospheric dynamic processes.
The integrated observation/model data set will provide the basis for exploring radiative impacts of aerosols and cloud formation on atmospheric processes. What is the temporal variability of surface radiation that drives meteorological processes and feedback on cloud formation? What is the role of radiation, surface albedo, aerosols, and clouds in meteorological regimes representative of complex terrain in the Columbia River Valley? Statistical correlations between the observations and meteorological regimes that determine the planetary boundary layer height and wind flow characteristics will be investigated and compared with NWP models (HRRR/RAP).
We are interested in the following questions through retrospective studies:
- Is there a statistical correlation between in-coming and out-going shortwave radiation and longwave radiation at the surface and specific meteorological regimes that represent the planetary boundary layer and wind flow characteristics? How are these correlations changing diurnally and seasonally? How well is this captured by NWP models.
- How do changes in LW and SW surface radiation, cloud fraction, cloud optical depth, and aerosols correlate with meteorological regimes and wind flow characteristics?
- Seasonal changes in land surface characteristics will be reflected in the measured spectral surface albedo. How do changes in spectral surface albedo correlate with net SW and LW radiation, latent and sensible heat, PBL, and wind speeds?
GML Data Access:

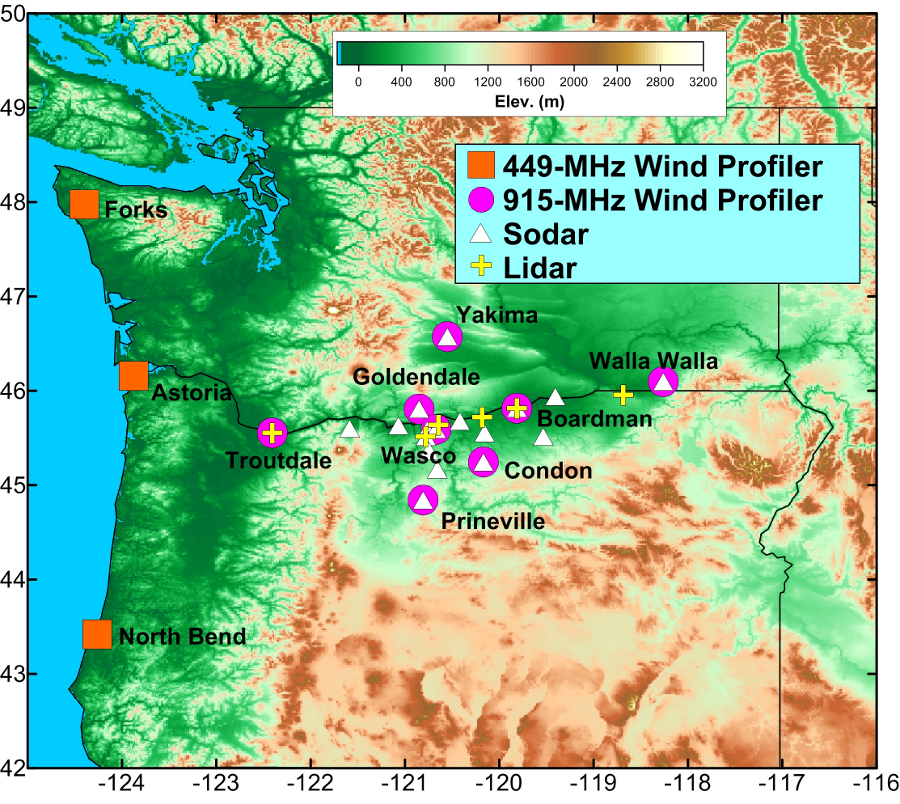

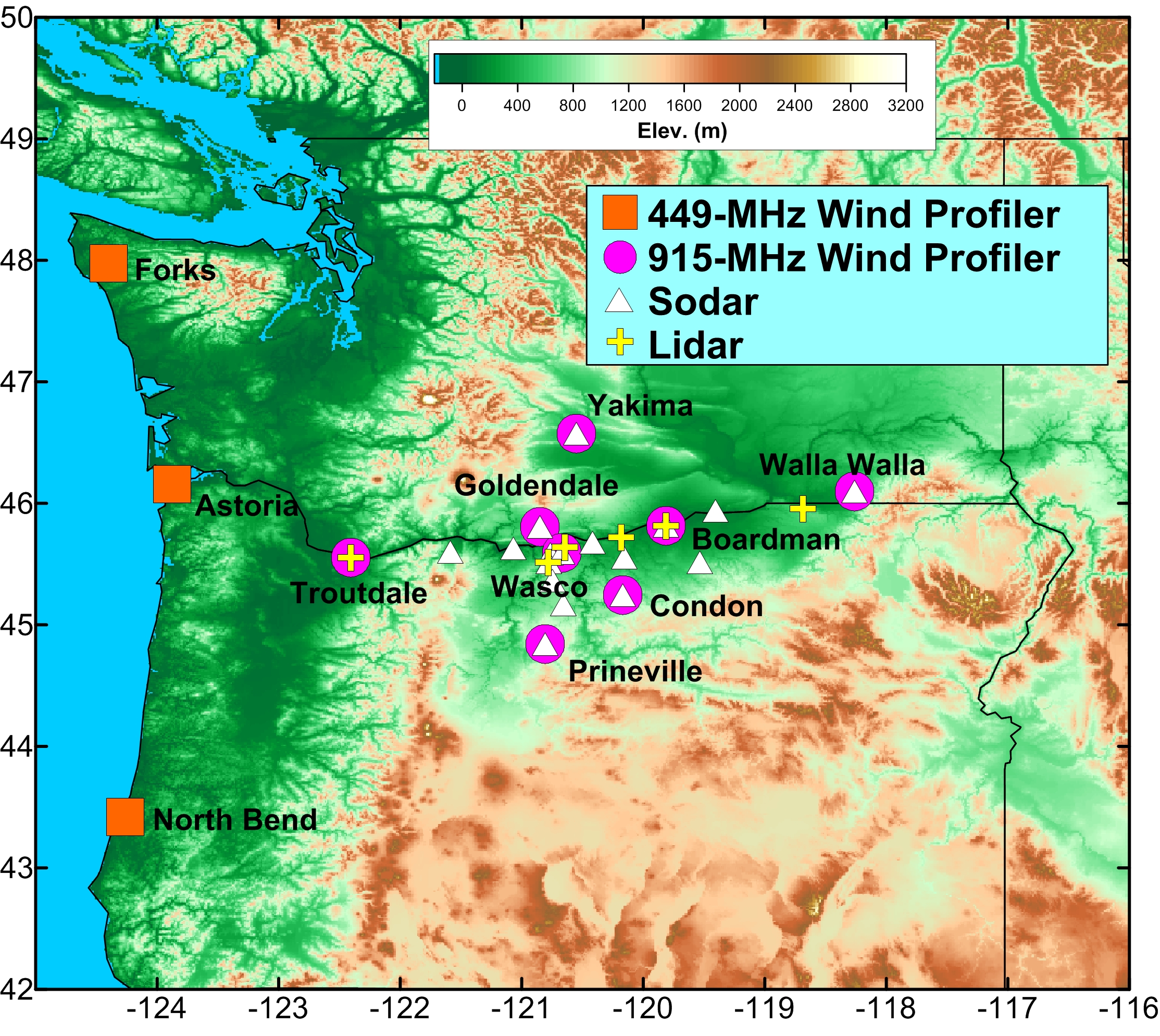

GML GRAD has three sites located in the Columbia River Basin: Condon Airport, OR, Rufus, OR, and Wasco Airport, OR. A mobile SURFRAD unit for measuring the surface radiation budget, meteorology and aerosols is located at the Wasco Airport site, and two portable RadSys systems are located at Condon Airport and Rufus, OR. All three of these systems have the required information for the RadFlux Analysis Programs for additional radiation and cloud information developed by Chuck Long [Long et al., 2000, 2005].
Radiation FTP Data access:
- QA/QC data next day:
- Real-time every 15 min:
- QCRad Data next day:
- RadFlux Data (~monthly)
Sky Images and Aerosol Optical Depth at Wasco, OR:
Other Data Access:
Project data are archived at the PNNL Data Archive and Portal (DAP).
Contact:
Kathy Lantz, Kathy.o.lantz@noaa.gov, 303-497-7280
References:
- Augustine, J., E. Dutton, Variability of the surface radiation budget over the United States from 1996 through 2011 from high‐quality measurements, J. Geophys. Res., 118, 43–53 doi:10.1029/2012JD018551, 2013.
- Long, C. N., T. P. Ackerman, K. L. Gaustad, and J. N. S. Cole (2006), Estimation of fractional sky cover from broadband shortwave radiometer measurements. J. Geophys. Res., 111, D11204, doi:10.1029/2005JD006475.
- Long, C. and T. Ackerman, Identification of clear skies from broadband pyranometer measurements and calculation of down-welling shortwave cloud effects, J. Geophys. Res., 105, D12, 15609-16626, 2000.
